Description

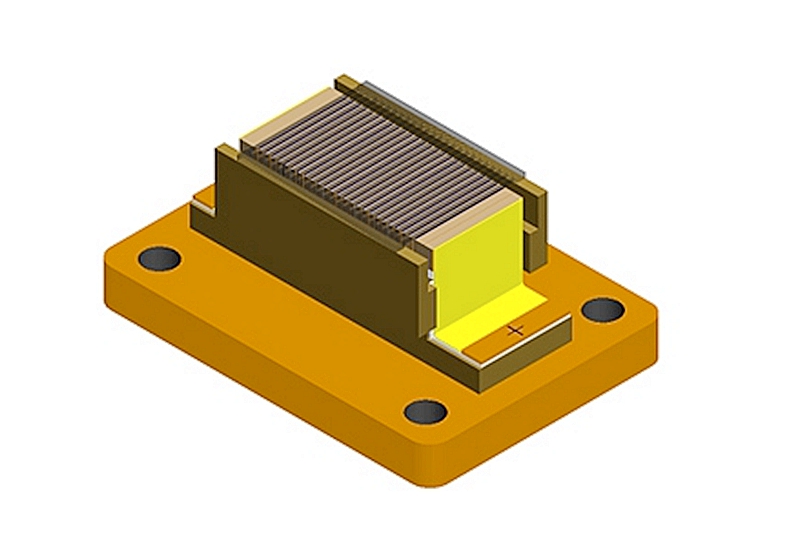

QCW Quasi-Continuous Wave Laser Conduction Cooled Lasers 3750W 150W/Bar 25 Bars G-STACK Series



Total Output Power: 3750W
Output power per Bar: 150W/bar

Output wavelength:808nm
Wavelength range:+-2nm
Bar Number:25pcs
Bar Spacing:0.74mm
Spot Area:10*17.7mm

Half-height Width:4nm
Optical collimation:Customizable spot size

Working current:<180A
Working voltage:<2V/Bar
Duty cycle:<0.5%
Pulse width:1~200us:
Conversion efficiency:>50%
