Focusable 1.6W 808nm 810nm Infrared Laser Diode Module

$189.00

SKU: 2251832478142308 Category:

Description

Focusable 1.6W 808nm 810nm Infrared Laser Diode Module
Product Description

Focusable 1600mW 808nm 810nm Infrared Laser Diode Module TTL


Something buyer need to know:
1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30?.
2. Please add a 5VDC power to this laser module. Red wire connects”+” pole; Black wire connects “-” pole. TTL 3-5V on, 0V off. If you don’t use TTL, please just leave the blue and white wire.

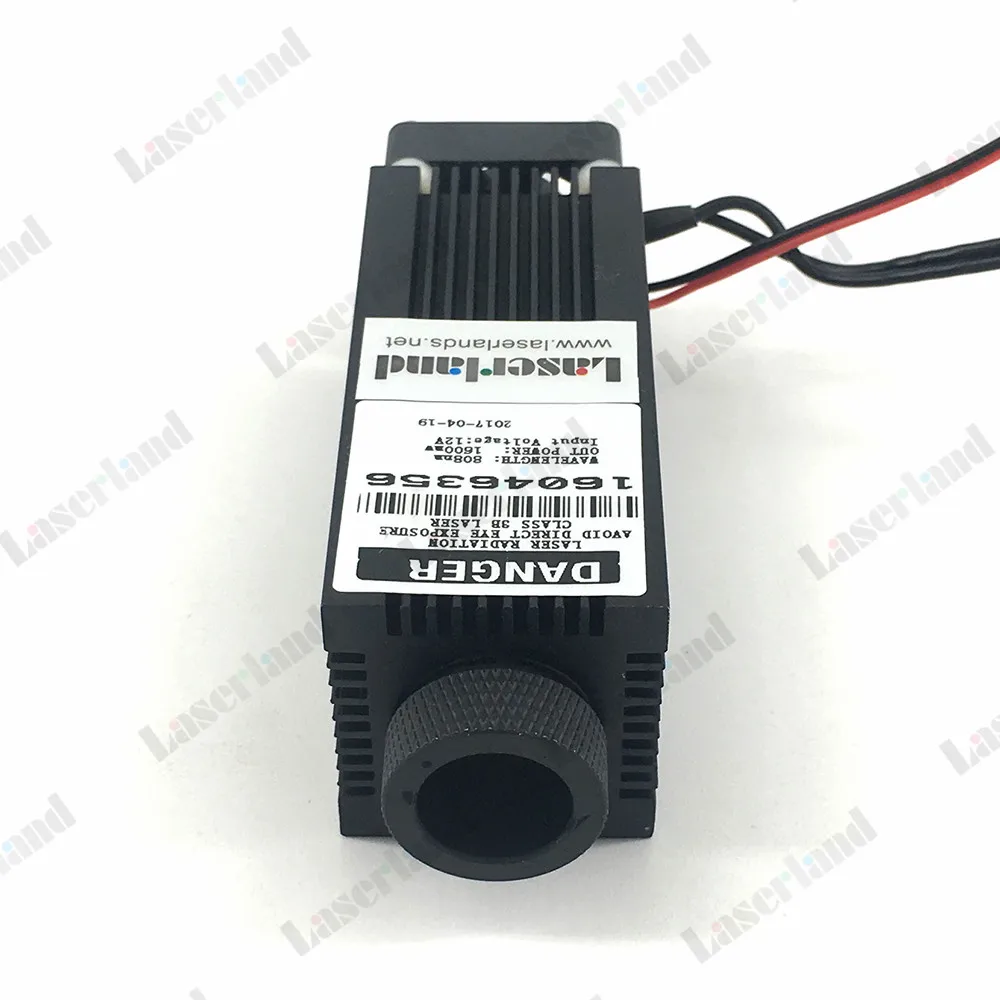

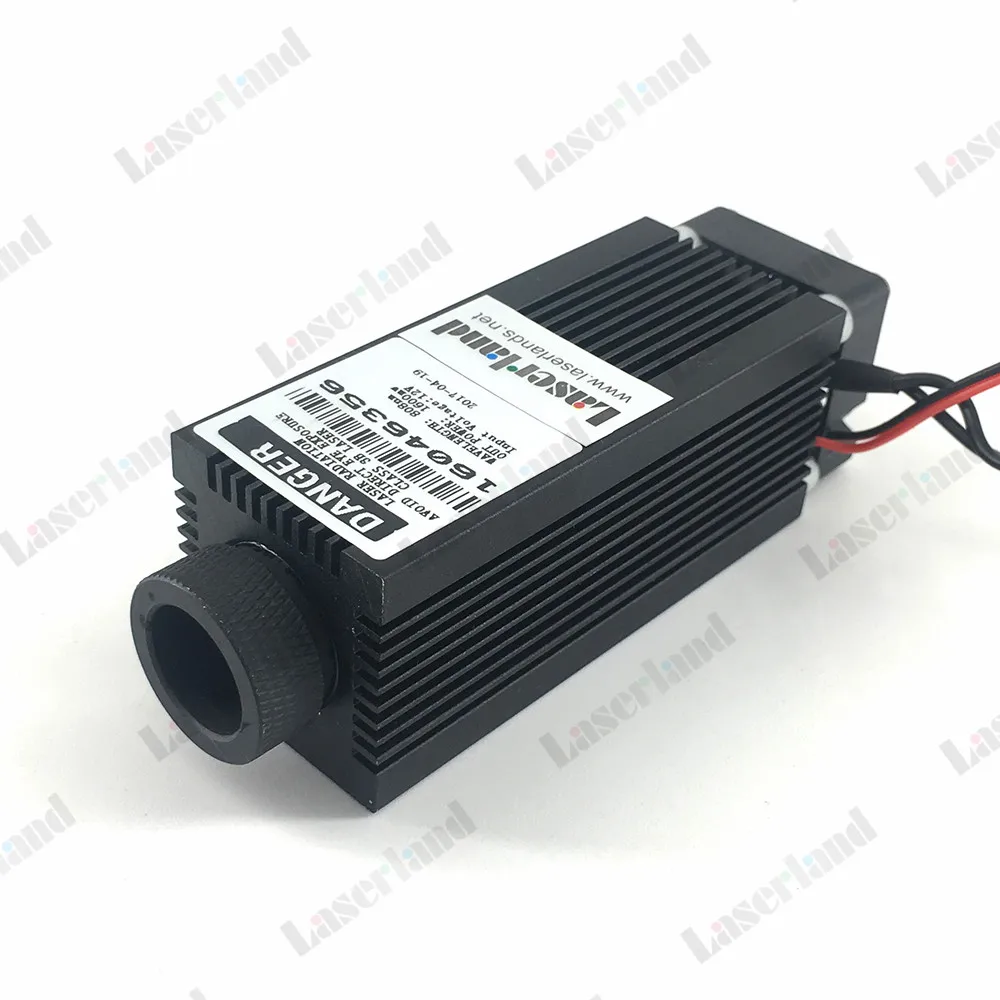

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

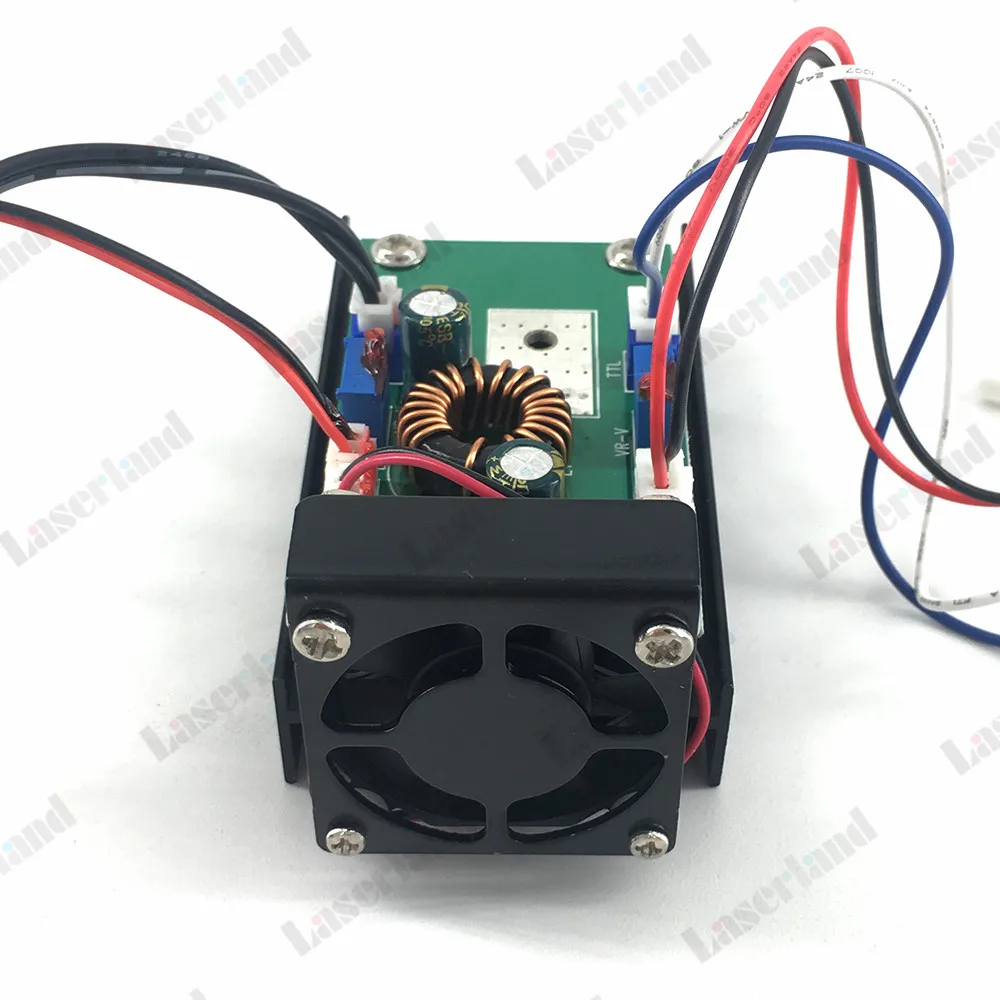

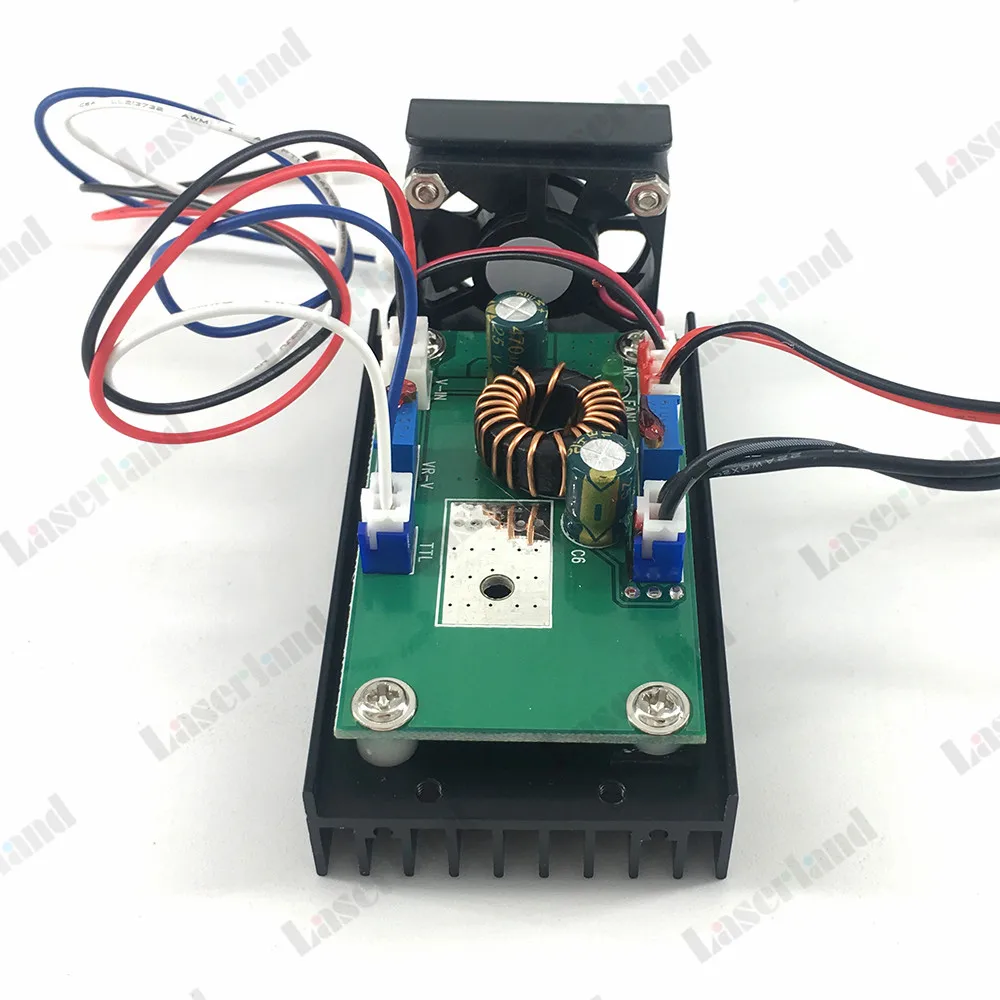

4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
5. Please wear 808nm laser protection goggles to protect your eyes when working on this module.

Specification
Products Type   LLM3380-810-1.6w-5.0T
Size  33*33*80mm
Wavelength  810nm
Lens   Glass
Output  >1600mW(1.6W)
Divergence  5mrad
Working Voltage  5VDC
TTL   >20KHz
Working Current   1.35A +-15%
LD   808nm 2W
Working Temperature   -10- 30 centi-degree
Operating Life    >5000 Hours

Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
