Description

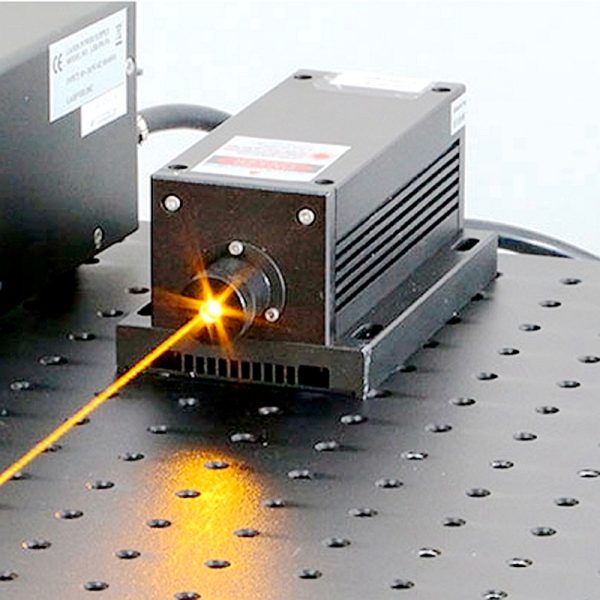

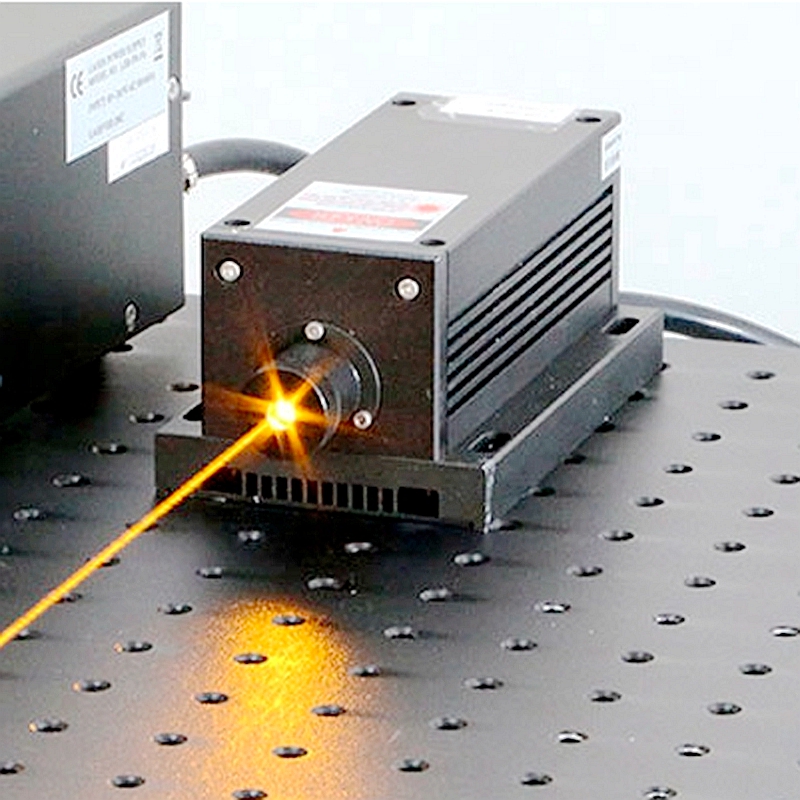

589nm Laser DPSS Diode Pumped Solid State Yellow Laser Output Power 1W 1000mW



The Max output power 1W 1000mW. Please contact us if you need to customize it for your application requirements. Here is the video for the DPSS yellow 589nm laser.





Wavelength (nm): 589nm+-2

Output power (mW): 1000mW 1W

Transverse mode Near: TEM00

Operating mode: CW

Power stability (rms, over 4 hours): <3%, <5%

Warm-up time (minutes): <10

M2 factor: 3.0~6.0

Beam divergence, full angle (mrad): <2. 0

Beam diameter at the aperture (mm): ~4. 0

Beam height from base plate (mm): 93.5

Polarization ratio: >100:1

Operating temperature: 10~35

Power supply (90-264VAC): PSU-W-LED PSU-W-FDA

Modulation option: TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option

Expected lifetime (hours): 10000

Warranty period: 1 year

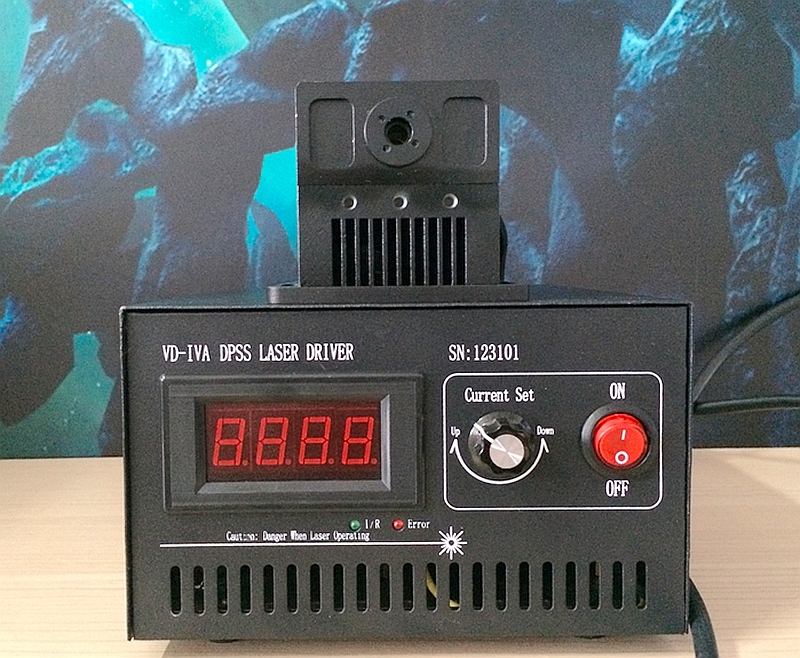

The laser driver has analog modulation , there is a knob that allows you to regulate the power output from 0 to 3000 mW. That means the output power is adjustable.
