Description

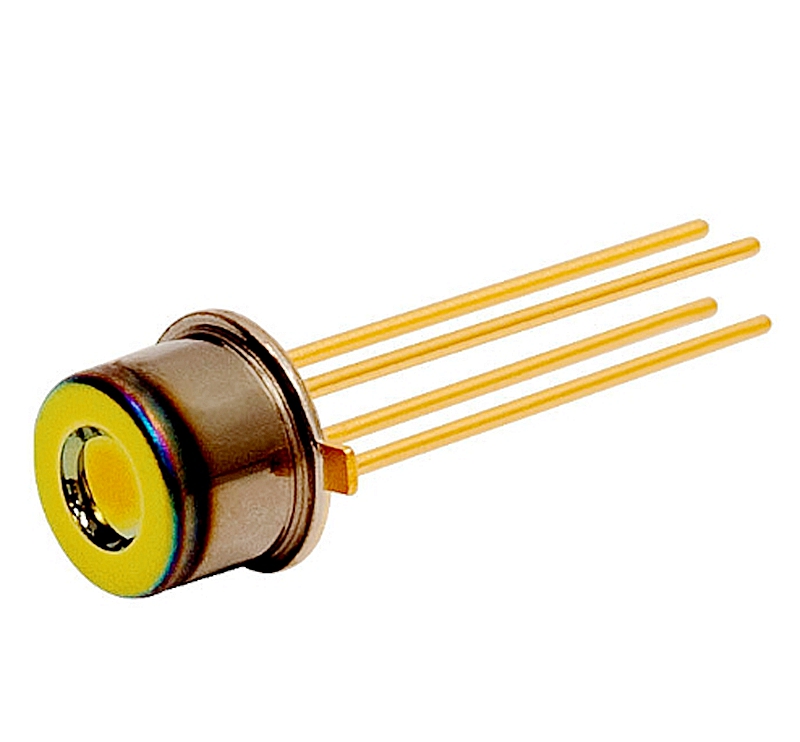

Vertical Cavity Surface Emitting Laser 850nm 10mW Semiconductor VCSEL Laser



Features:

850nm single longitudinal mode;
Oxide isolation technology;
Small emission area;
Easy to collimate;
Modulation and width >2GHz.



Datasheet: Vertical Cavity Surface Emitting Laser 850nm 10mW Semiconductor VCSEL Laser



Applications:

Proximity sensors;
Consumer electronics;
Active optical cables;
Medical applications;
Range finder sensors.

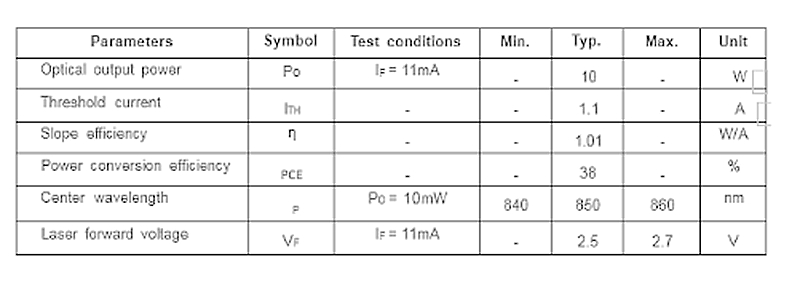

Optical output power:10mW
Threshold current: 1.1A
Slope efficiency:1.01 W/A
Power conversion efficiency: 38%
Center wavelength: Min 840nm, Typical 850nm, Max 860nm
Laser forward voltage: 2.5V Max 2.7V
