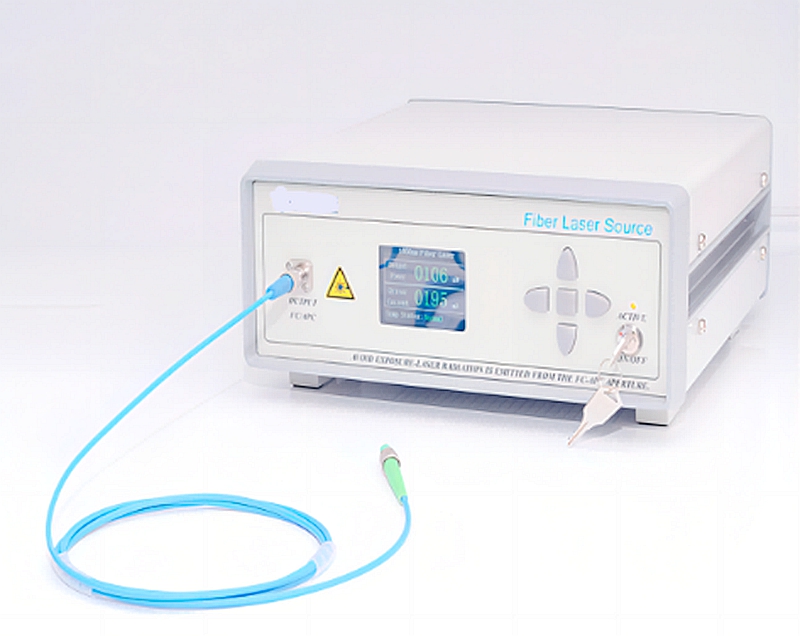

Tunable Diode Laser 1064nm single-mode pulsed fiber laser





1064nm single-mode pulsed fiber laser

The nanosecond pulse laser adopts a unique circuit and optical optimization design, the output laser pulse width, peak power, repetition frequency can be adjusted, the working wavelength and power output are stable, the single-mode fiber output, the modular type is convenient for system integration, suitable for laser ranging, fiber sensing and other fields.

characteristic
All-fiber construction
Pulse width, repetition frequency, and power are adjustable
Benchtop or module package

apply
Lidar
Nonlinear optics
Fiber optic sensing



parameter
Center Wavelength  ：1064nm
Spectral width: ≤1 nm
output peak power: 10- 50W （adjustable）
Pulse width: 20-50ns (adjustable)
Repetition rate: 1~1000kHz adjustable
Pulse turn-off ratio: ≥60dB
Beam quality M2: ≤1.1(@When working with the output of the fiber collimator)
output isolation:≥30dB
Short-term stability (15 mins): ≤ ±0.02dB (equivalent≤±0.5%)
Long-term stability (8 hours): ≤ ±0.05dB (equivalent ≤±1.2%)
Output laser polarization state: random/linear polarization
Optical power monitoring:   output optical power monitoring
Pigtail type and connector: Hi-1060
Pigtail joint type: FC/APC
Control mode: RS232 serial communication
Communication interface: DB9 Female
Trigger mode: internal/external trigger (optional) SMA
Electricity Desktop： 100~240V AC, <30W
Electricity module：5V 3A DC, <15W
Desktop Size：260(W)×280(D)×120(H)mm
module Size：120(W)×150(D)×20(H)mm
Operating temperature：-5 ~ 35°C
Operating humidity：0~70%
