Description

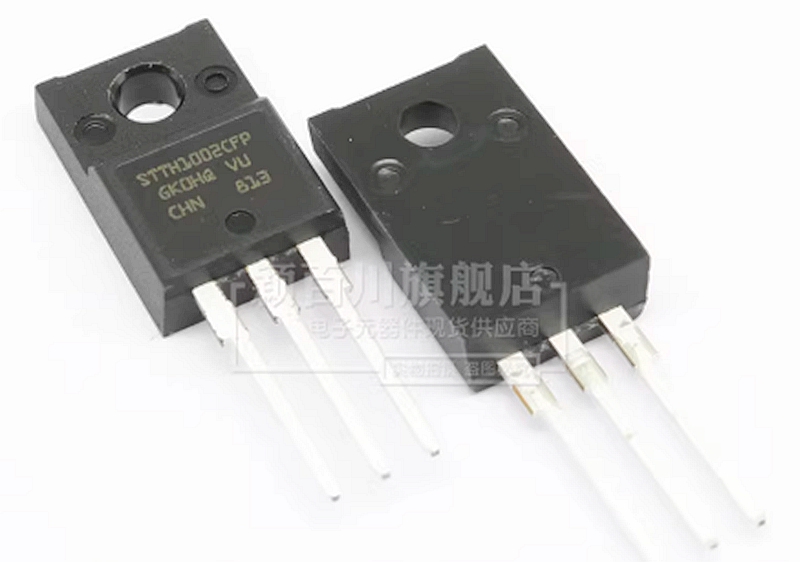

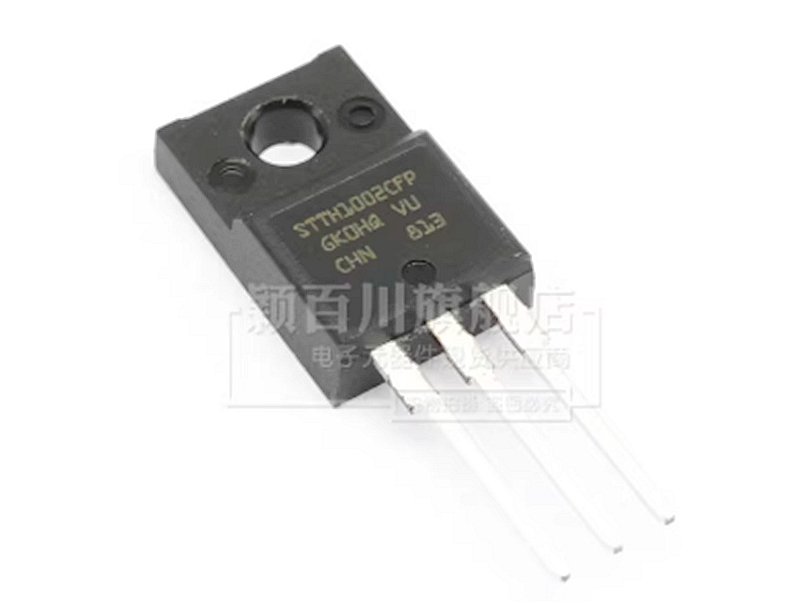

STTH1002CFP TO220F Fast Recovery Rectifier Diode STTH1002C



Product Type: Rectifier

Mounting Style: Through Hole

Package/Case: TO-220FP-3

Vr – Reverse Voltage: 200 V

If – Forward Current: 8 A

Type: Fast Recovery Rectifiers

Configuration: Dual Common Cathode

Vf – Forward Voltage: 1.25 V

Maximum Surge Current: 50 A

Ir – Reverse Current: 5 uA

Recovery Time: 20 ns

Maximum Operating Temperature: +175°C

Series: STTH1002C

Height: 9.3 mm

Length: 10.4 mm

Product: Rectifiers

Termination Type: Through Hole

Width: 4.6 mm

Pd – Power Dissipation: –

Product Type: Rectifiers

Factory Packing Quantity: 1000

Subcategory: Diodes & Rectifiers

Unit Weight: 2.300 g
