Description

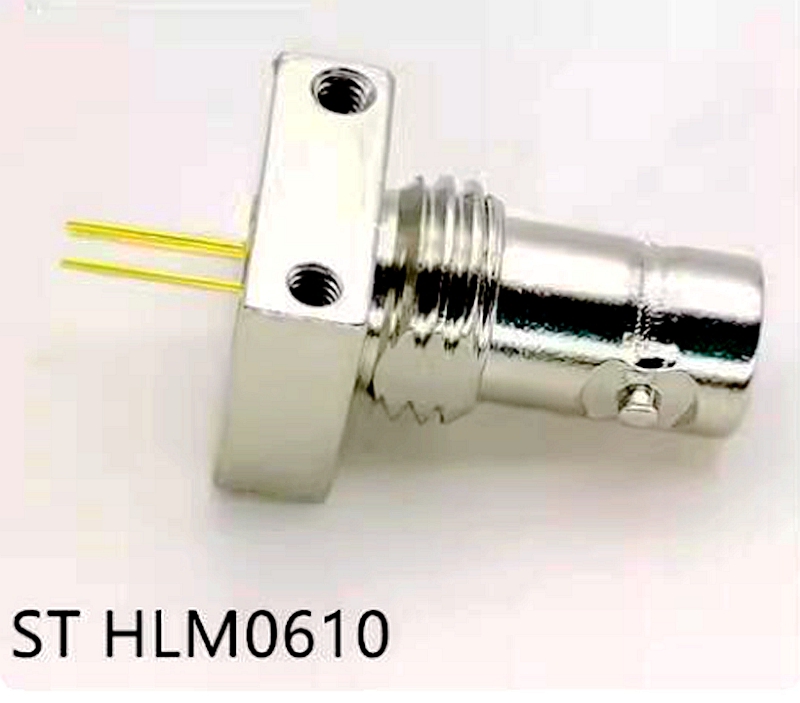

PHILIPS BIG BORE MOOG Module Moog components HLM0610 FO6516 Parts P/N 453567098202 for Transmitter Box



Wavelength: 658nm
Light Output: 80mW
Package Type: TO-18TO56
Absolute Maximum Ratings(Tc=25C)
Reverse Voltage:2V
Photo diode: 20V
Operating Temperature: 10 – 40C
Storage Temperature: 20 – 85C
Electrical and Optical Characteristics(Tc=25C)
ParameterSymbols
Threshold Current: 65mA
Operating Current: 150mA
Operating Voltage: 2.4V
Slope Efficiency: 0.9mW/mA
Beam Divergence: 9.5deg.
(FWHM): 17deg

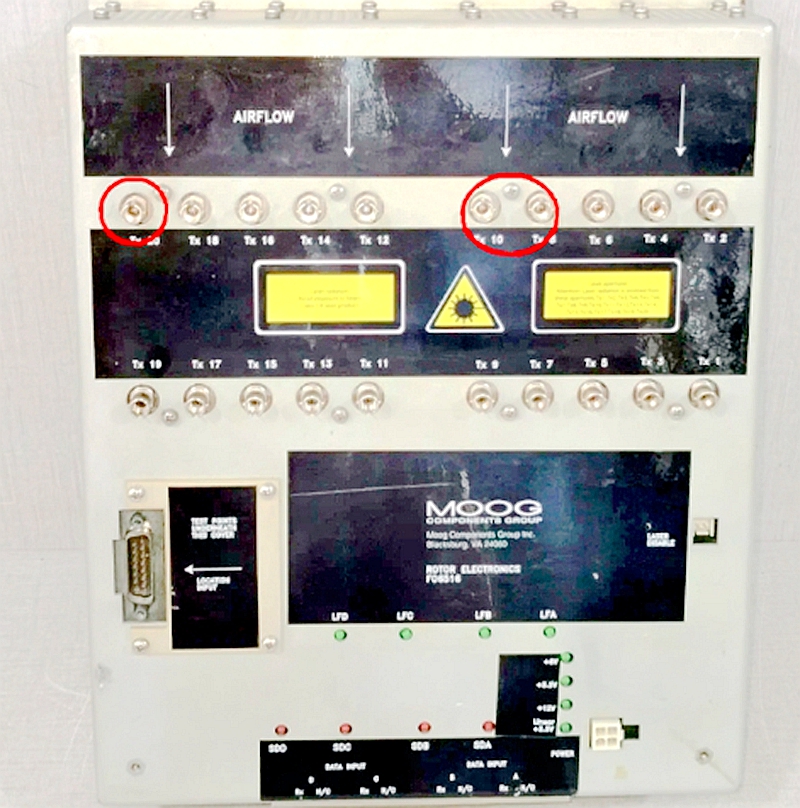

Check the red circle for the HLM0610 laser LED components.
