Description

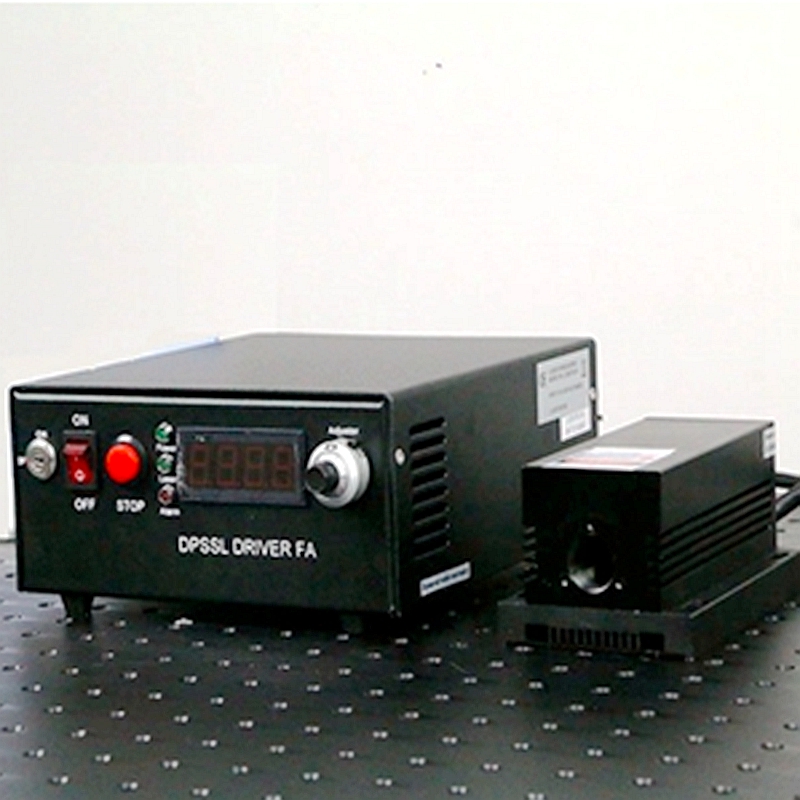

Optical Fiber Inscription Deep UV Pulsed Q-switch 266nm ultraviolet laser



Optical Fiber Inscription Deep UV Pulsed Q-switch 266nm ultraviolet laser. It can be used in FBG (Fiber Bragg Grating) inscription on single-mode SMF-28 optical fiber.
Compact structure, long life, cost-effective, easy to operate and other characteristics

It is widely used in ultraviolet curing, microelectronics, optical disc engraving, laser medical treatment, scientific experiments and other fields

Wavelength (nm)：266
Peak power (W): 4000
Output Power (mW)：1-20
Average Power Stability : 5% <10%
Transverse Mode : TEM00
Single Pulse Energy: 0.02
Working Mode: Passive Q-Switched Pulse
Pulse Width : 5
Polarization ratio: 100:1
Operation Temperature (°C)： 10~35°C
Beam Diameter： 1.5
Warm-up Time ：10min
Beam Diameter at Aperture (mm) ：2mm
Expected Lifetime (hours)： >5000
Repetition rate (KHE)： 1
Warranty Time 1 year

Applications:
FBG (Fiber Bragg Grating) inscription on single-mode SMF-28 optical fiber.
