Description

hamamatsu Mini-spectrometers C12880MA

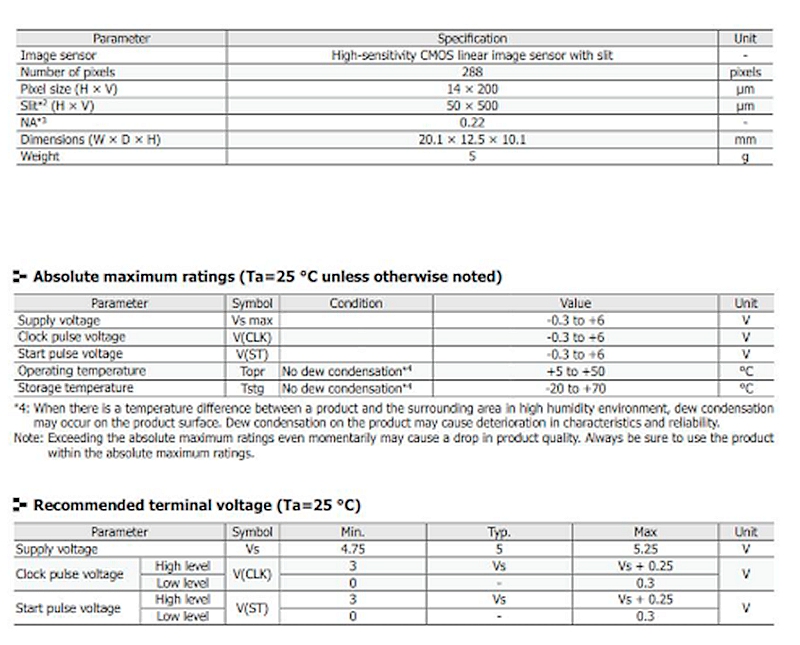

Datasheet:hamamatsu Mini-spectrometers C12880MA

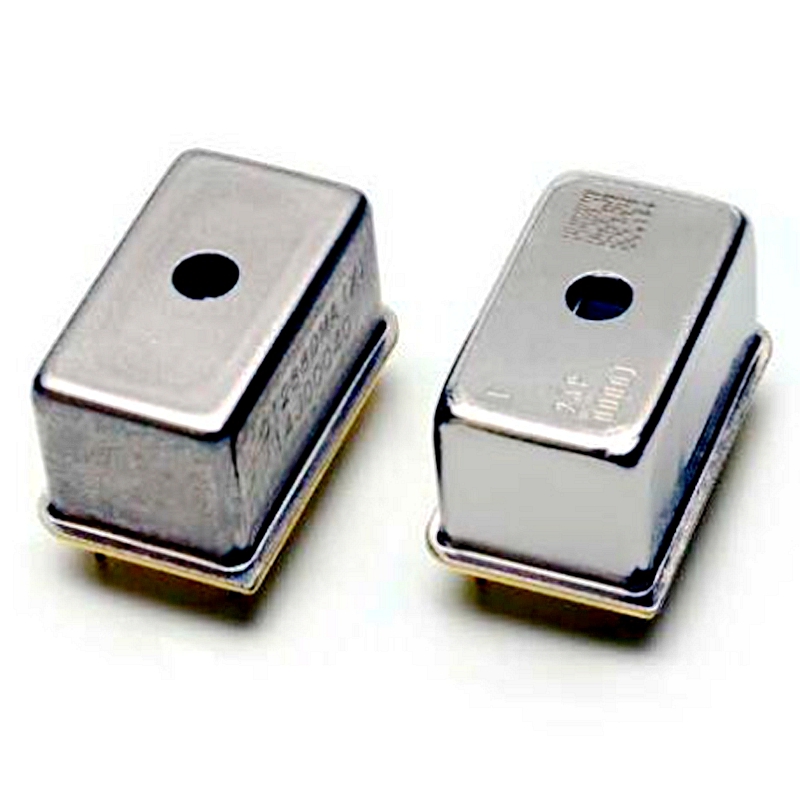

The C12880MA and the C16767MA are high-sensitivity, ultra-compact (fingertip-sized) spectrometer head. The C12880MA supports the long wavelength region (up to 850 nm) and the C16767MA supports the ultraviolet region (190 to 440 nm). These products are suitable for integration into a variety of compact devices.

hamamatsu Mini-spectrometers
C12880MA With Arduino Compatible Breakout Board

Fingertip size: 20.1 x 12.5 x 10.1 mm
Weight: 5 g
Spectral response range: 340 to 850 nm (C12880MA)
190 to 440 nm (C16767MA)
High sensitivity
Spectral resolution: 15 nm max. (C12880MA)
8 nm max. (C16767MA)
Supports synchronized integration
(electronic shutter function)
For integration into mobile measurement equipment
Wavelength conversion factors*1 are listed on final
inspection sheet.
Hermetic package (C12880MA)

Applications

Food inspection
Biometry (POC)
Tester for lights, LEDs, etc.
Water quality control monitors and other environment
measuring instruments
Various light level measurements
