Description
Feature
Global Innovation
Atomstack pioneered an industrial grade 1064nm infrared laser module with a repetition rate of 20000Hz, suitable for rapid and fine carving of metals, as well as non-metallic materials such as painted wood furniture, ABS, and plastic.
Greatly Improve Work Efficiency
After industrial design, the net weight of the module is only 450g (800g+for the first generation and other products in the industry). Under the same framework, the movement speed and work efficiency can be improved by 40%
Born For Metal And Plastic Engraving
Infrared fiber lasers have unparalleled advantages in metal and plastic surface engraving. This is impossible for traditional diode blue lasers.
Better Engraving Effect
Thanks to Atomstack light spot compression technology, the light spot of R30 laser module is compressed into a circular laser spot with a diameter of 0.03mm. This makes it very suitable for carving on custom jewelry or metal. The carving effect on the surface of the object is finer, clearer, and less prone to oxidation.
Rust Removal
1064nm wavelength laser has excellent absorption ability for metal surface coatings, which can remove rust on small areas of rusted metal without the need for chemical reactions or secondary electrolysis.
High Adaptability
R30 laser module can adapt to most Atomstack models, including:
X30Pro, A30Pro, S30Pro
X20 Pro, A20 Pro, S20 Pro, A20
X7 Pro, A10 Pro, S10 Pro, X7
A5 Pro, A5 Pro+
A5 M30, A5 M40, A5 M50
A5 20W, A5 10W
P9 M50, P9 M40, P7 M40, P7 M30
Can adapt to other brands, such as Ortur, NEJE, Two Trees, etc., you can also install our Atomstack R30 laser module, with an adapter in the box.
Safety laser
Compared with blue laser, infrared laser has its own safety characteristics. Non focal light is cold light, and accidental contact will not cause burns.
Long lifespan
1064nm laser output is stable, with an ultra long lifespan of 100000 hours (long-term use will result in a certain power attenuation)
Specification
Brand：Atomstack
Model：R30 V2
Optical Output Power：2W
Product Material：Aluminum 6061 Anode
Circuit Board Size：44*52mm
Laser wavelength：1064nm
Circuit Board：V/PWM Modulation Board
Wire Rod：22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens：φ6/glass
Laser Beam Mode：Spot
Working Mode：Pulse Work
Lightspot Size：Φ0.03mm
Working Time:100000H
Working Temperature：0℃~70℃
Storage Temperature：40℃~85℃
Light Temperature：Non-focal temperature: room temperature
Product Net Weight：520g

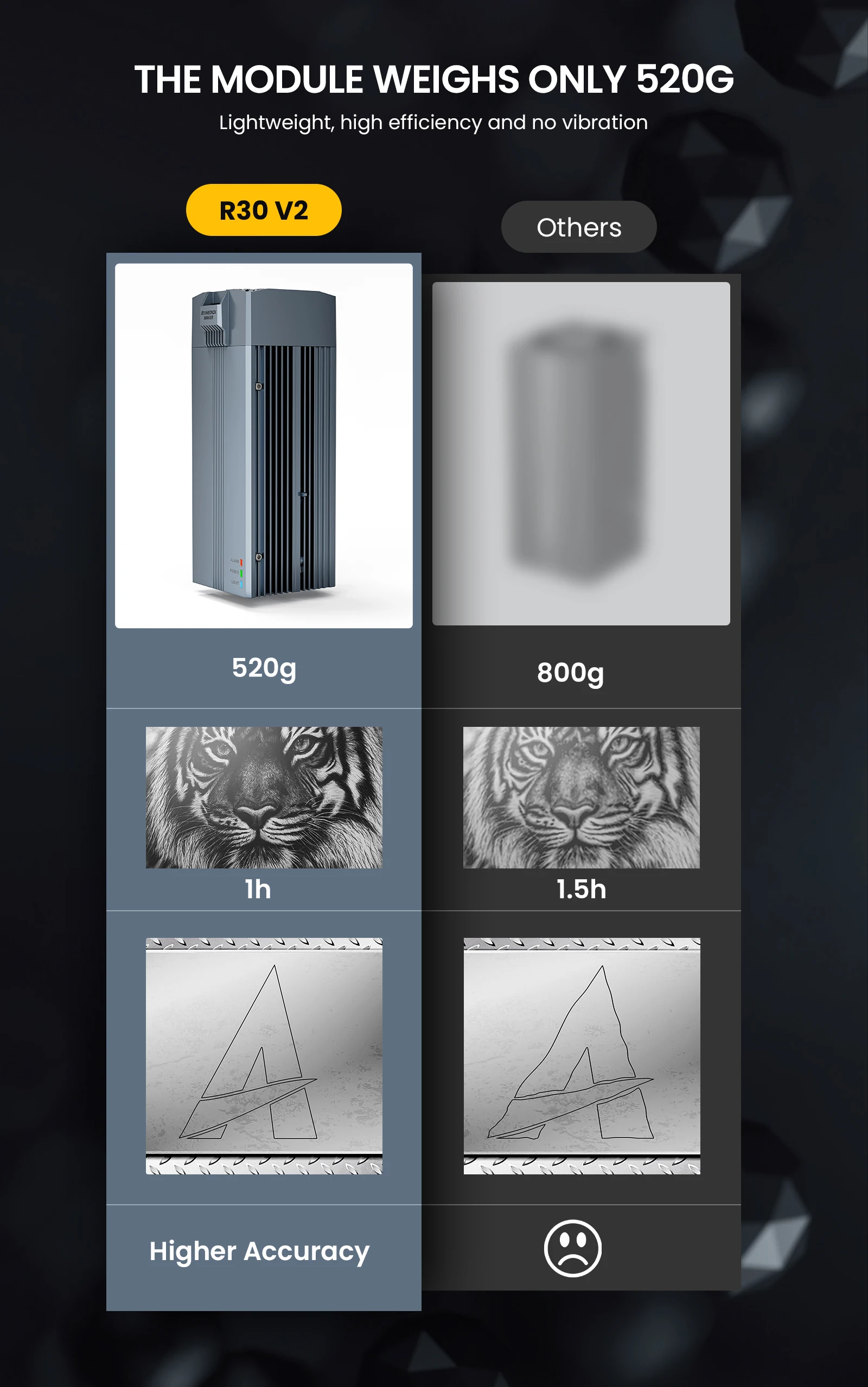

THE MODULE WEIGHS ONLY 520G
Lightweight, high efficiency and no vibration
COMPARISON OF METAL AND PLASTIC ENGRAVING EFFECTS

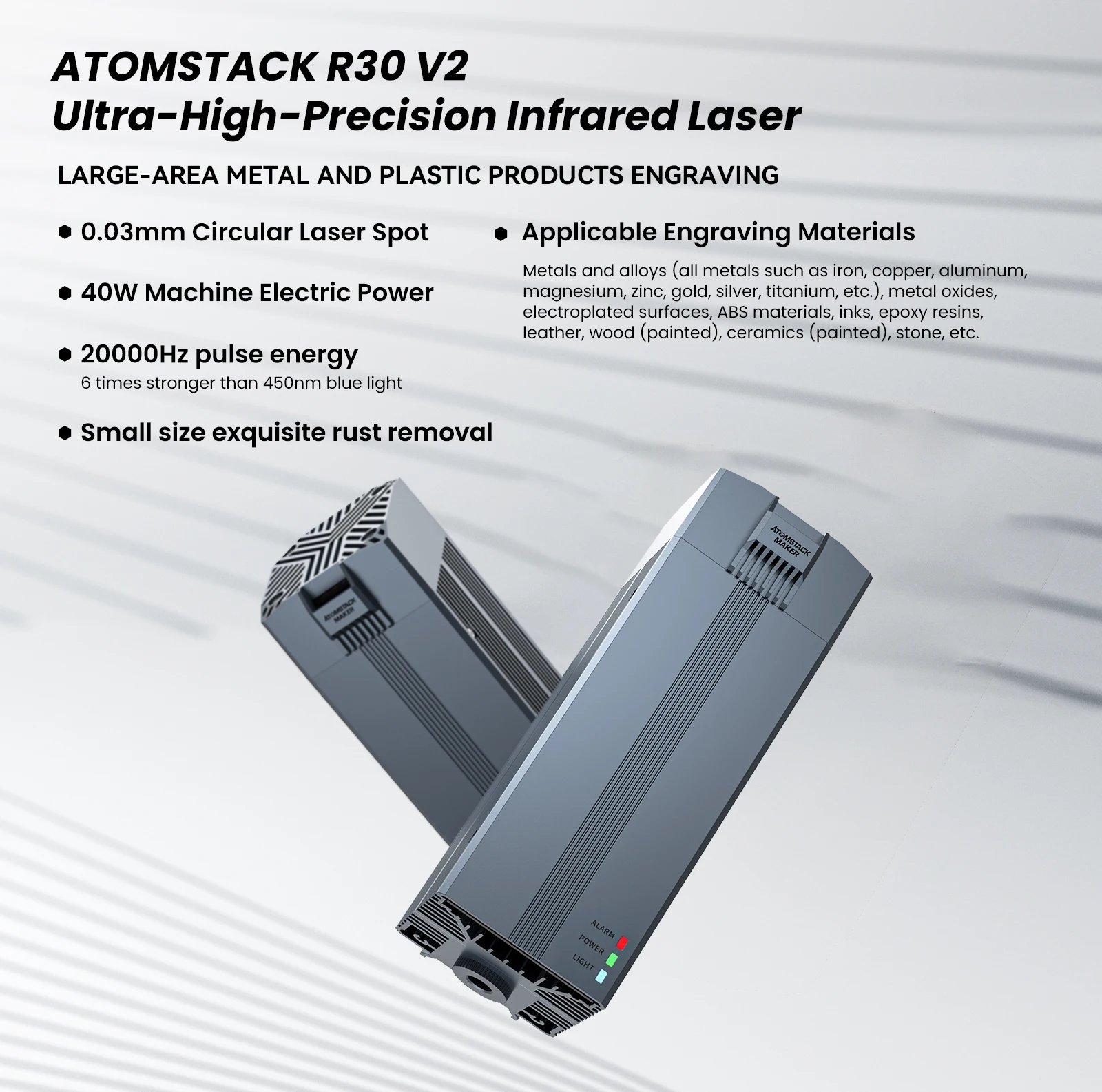

ATOMSTACK R30 V2 Ultra-High-Precision Infrared Laser
LARGE-AREA METAL AND PLASTIC PRODUCTS ENGRAVING
* 0.03mm Circular Laser Spot
* 40W Machine Electric Power
* 20000Hz pulse energy (6 times stronger than 450nm blue light)
* Small size exquisite rust removal
* Applicable Engraving Materials
Metals and alloys(all metals such as iron, copper, aluminum,magnesium, zinc, gold, silver, titanium, etc.), metal oxides,electroplated surfaces, ABS materials, inks, epoxy resins,eather, wood (painted), ceramics(painted), stone, etc.

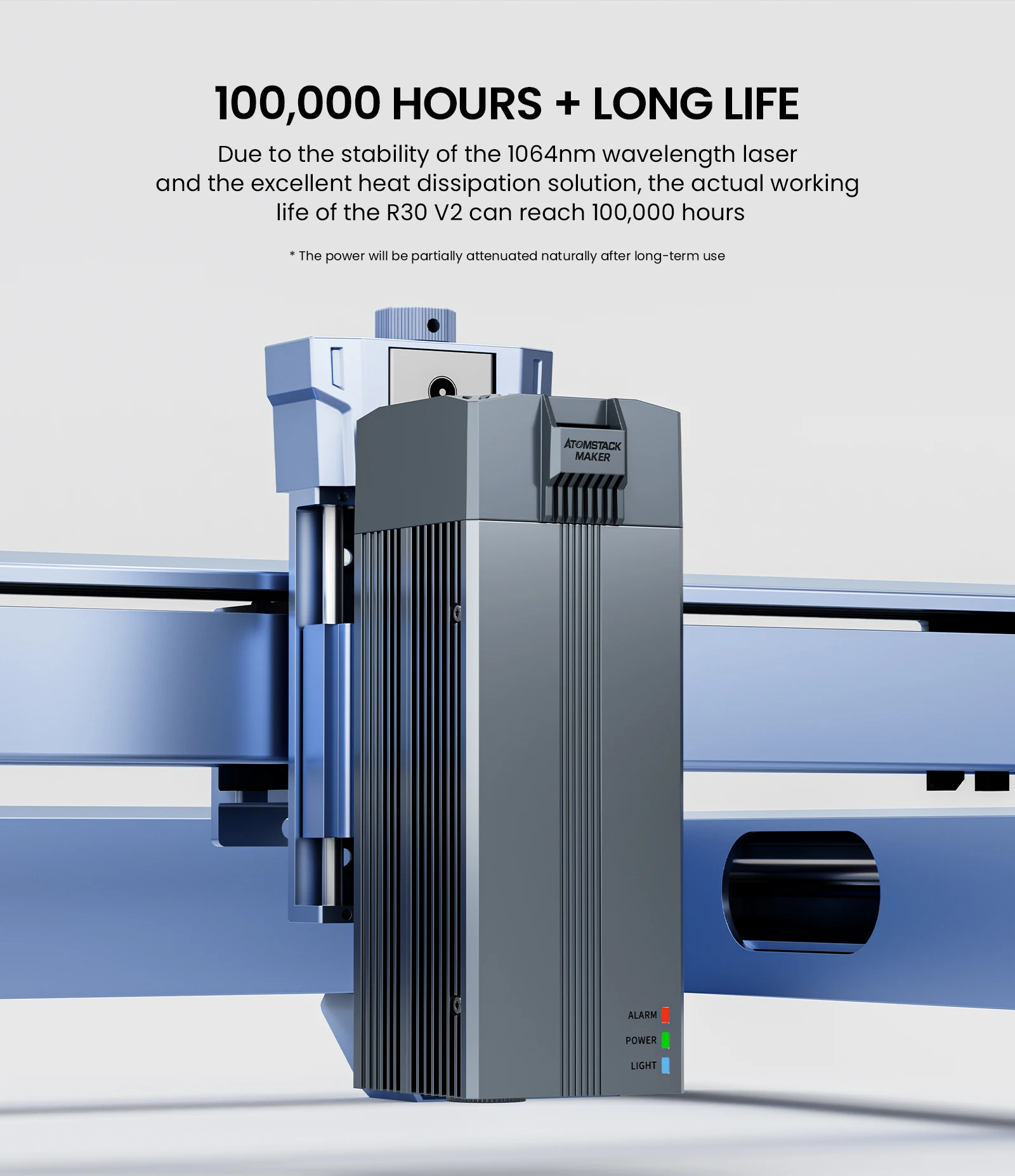

100000 HOURS + LONG LIFE
Due to the stability of the 1064nm wavelength laserand the excellent heat dissipation solution, the actual workinglife of the R30 V2 can reach 100,000 hours
The power will be partially attenuated naturally after long-term use

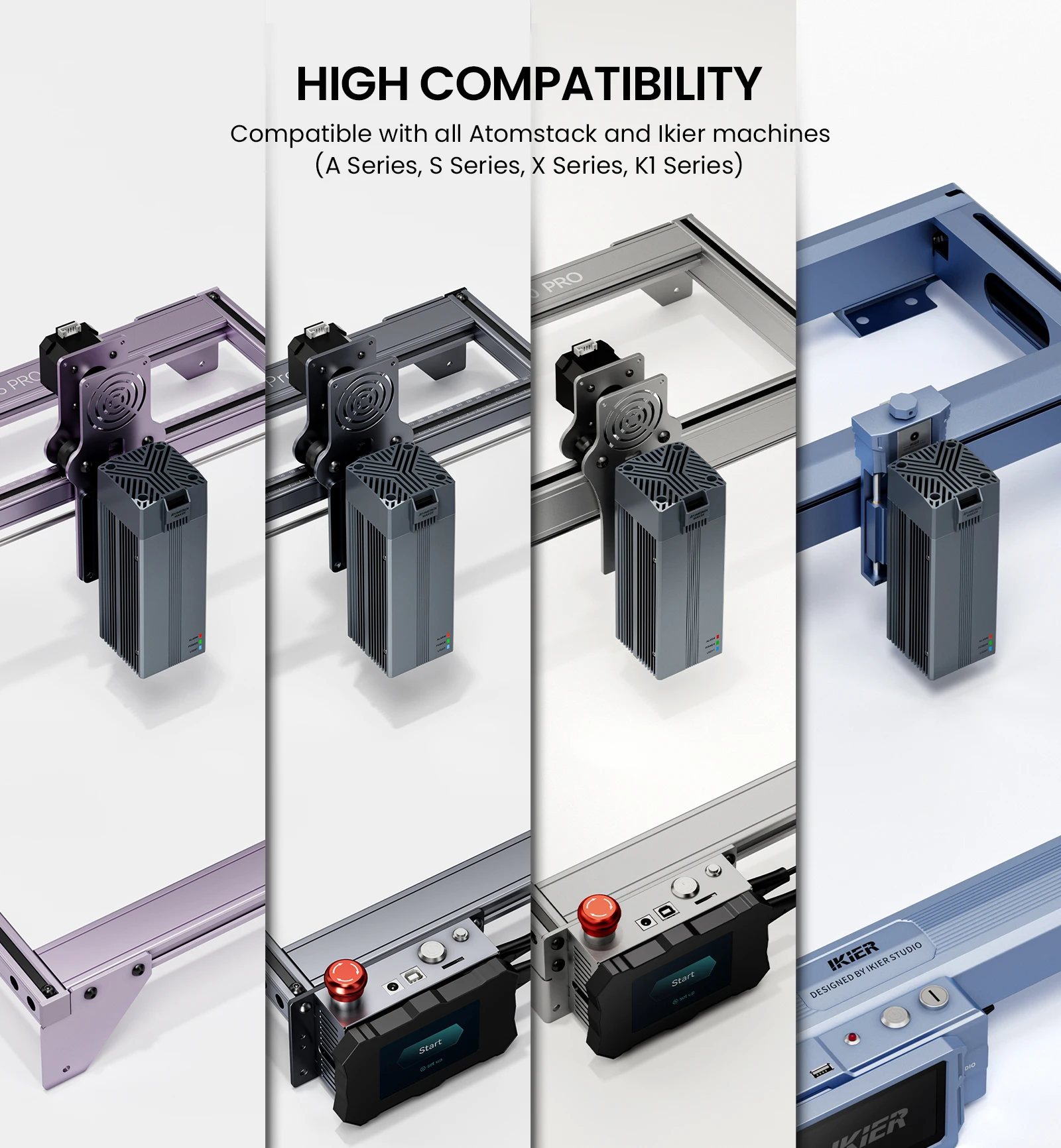

HIGH COMPATIBILITY
Compatible with all Atomstack and Ikier machines (A Series,S Series,X Series, K1 Series)
Engravable Material

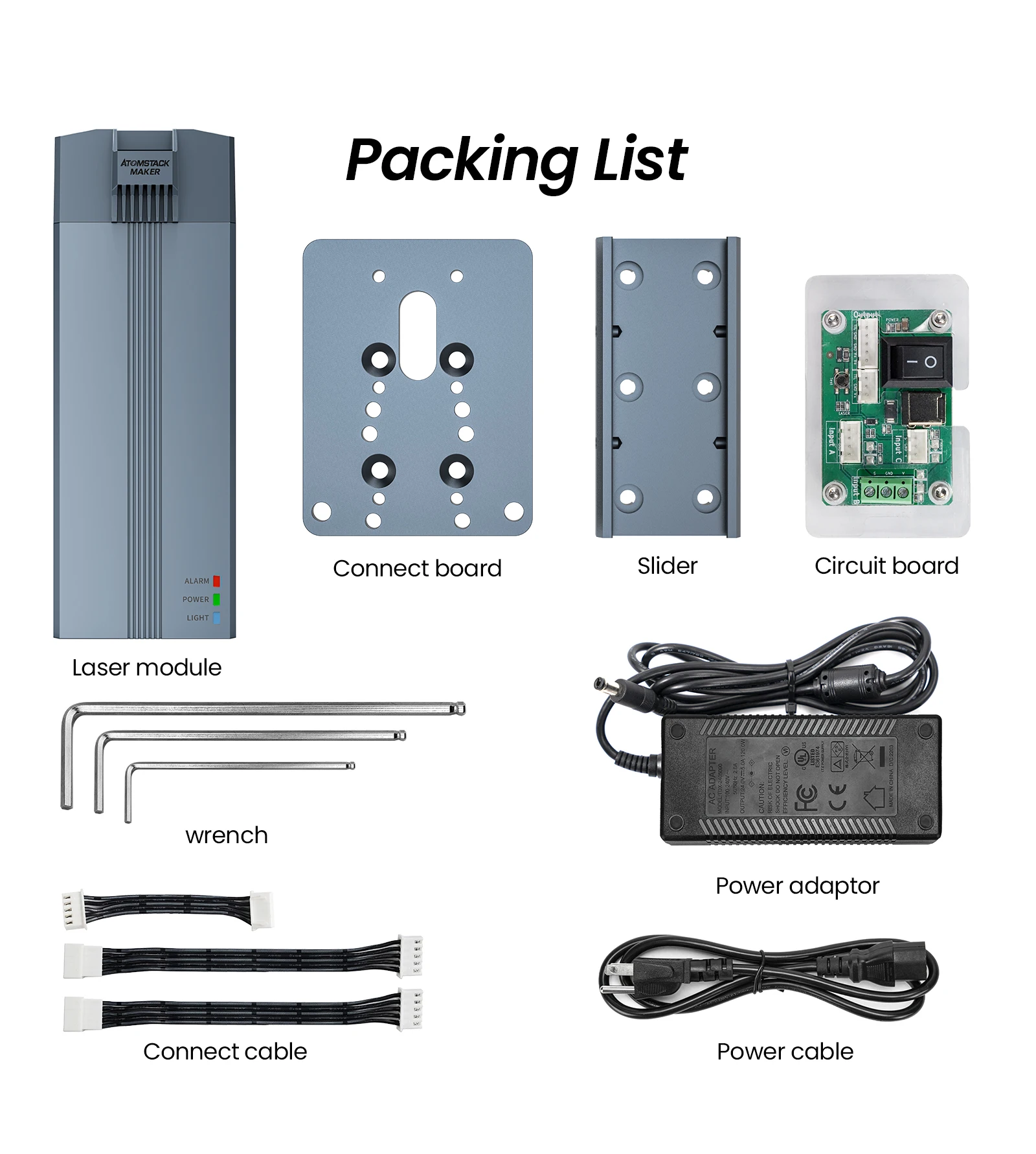

Packing List
