PRODUCT SPECIFICATIONS:

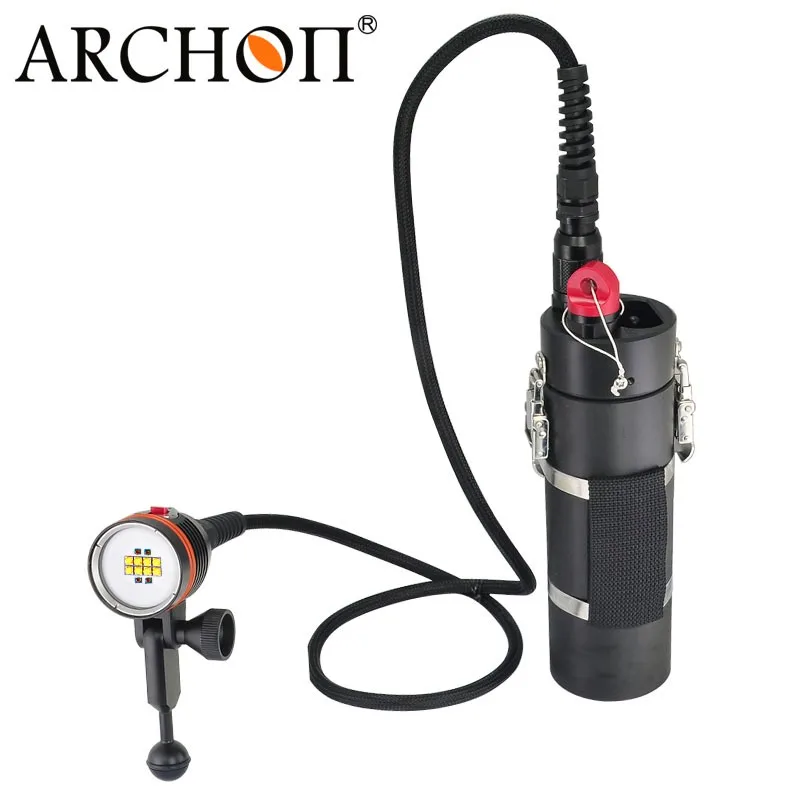

* Model: DH160 Canister Diving Video Light

* Bulb: White CREE XM-L2 U2 LED *12 (max 6500 Lumens); CREE XP-E N3*4 (wavelength 620nm, max 400 Lumens)

* Modes: High>Medium> Low>Red> off

* Runtime: High (1.5h); Medium (3.0h); Low (5.0h); Red (8.0h)

* Color temperature: 5000K (white light);

* Reflector: No hotspot design, no reflector;

* Lens: 5mm Polycarbonate Board;

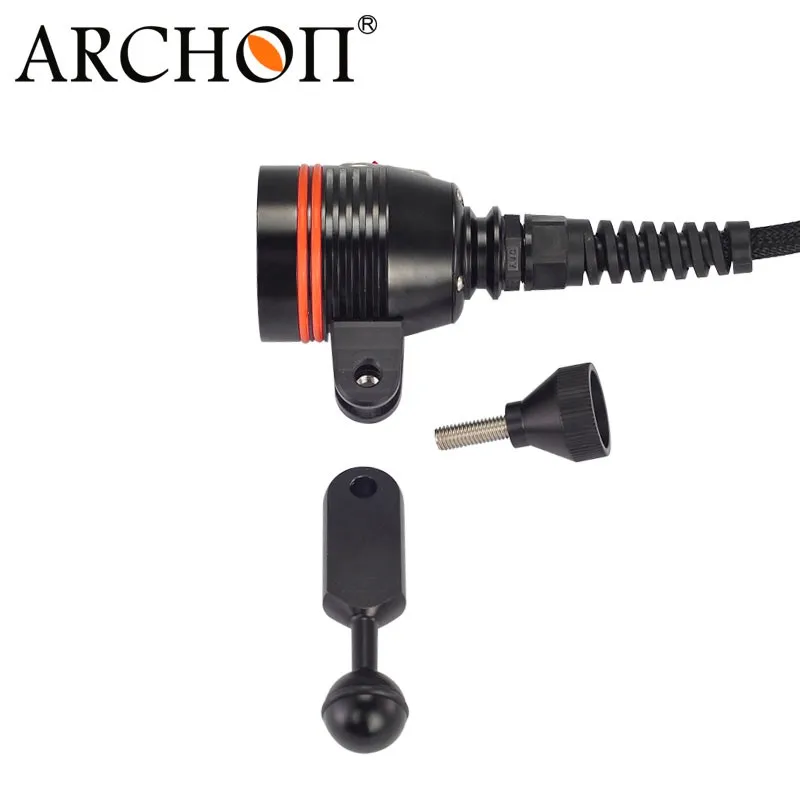

* Light head: with handheld bracket

* Body material: Durable aircraft-grade aluminum.

* Angle of light beam : 120°;

* Surface treatment: Premium Type III hard-anodizing.

* Color: Black

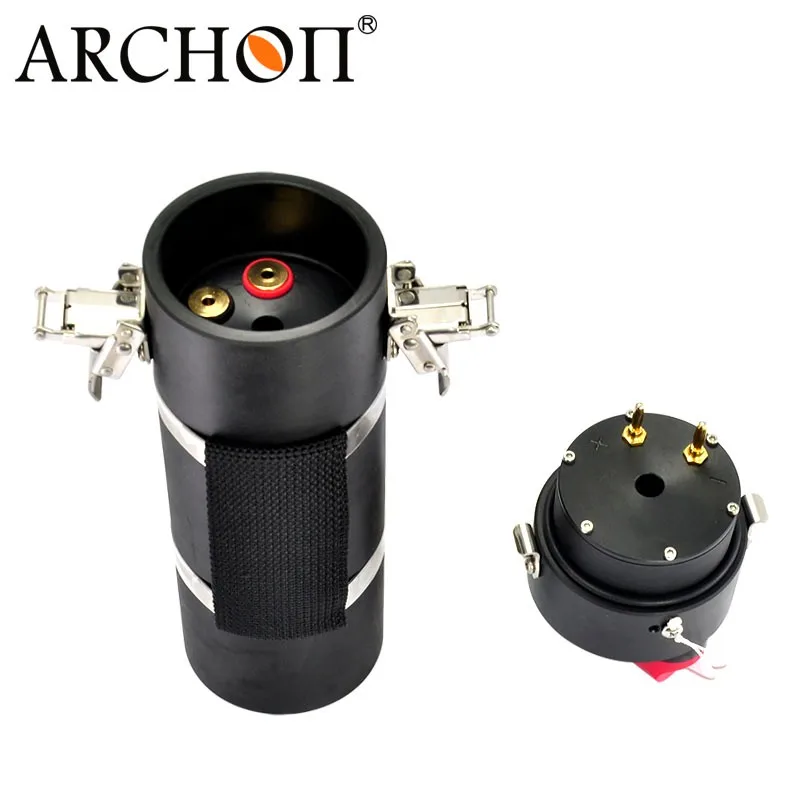

* Battery:  rechargeable Li-ion battery pack (26650 battery * 8)

* Battery Indicator: 100%-50%: Green; 50%-30%: Yellow; 30%-10%: Red; Below 10%: Red Flashing; Below 5%: switch off;

* Can be charged directly on the light, with battery over-discharging protection, polarity reversing protection

* Fully charging time: 8-10h;

* With gas release valves

* Operation voltage: 12V to 18V;

* Waterproof: 150 meters underwater

* Dimensions: 244.5mm (canister length)* 78.2mm (dia. Of canister) * 56.5mm (dia. Of light head);

* Weight: 2230 grams (with battery pack)

* Underwater Weight: 1100 grams (with battery pack)

* Impact resistance: 1.5M.





BATTERY CHARGING

1.Plug the charger in the wall power socket, the indicator light is green in the free-load status.

2.Plug the port of the charger in the ports on the light. (the positive and negative polar doesn’t matter, both ways work.)

3.The indicator light is red if the battery is not fully charged; it will turn green after fully charged.

4.Take out the charger, put the cover on the canister and use the light.



ON/OFF

Push the switch to turn it ON.



MODES CHANGING

Successive push the switch ON-OFF within two seconds to cycle through High, Low, strobe, OFF.



SCUBA DIVING APPLICATION

Check closely for cuts, scratches, or an otherwise damaged O-ring or mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the O-ring sealing surfaces.

KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.



CAUTION

If the light is not to be used for some time, remove the batteries to prevent possible leakage or corrosion. Please put the switch on the canister to the position of “OFF” during transportation to prevent it from misoperation.



If the switch gets stuck, please put some washing-up liquid in the slot of the switch and push the switch back and forward several times till it move smoothly again, then clean the light in the fresh water.
