Acousto Optic Modulator 1 RF Drivers to X Modulators Customized AOM

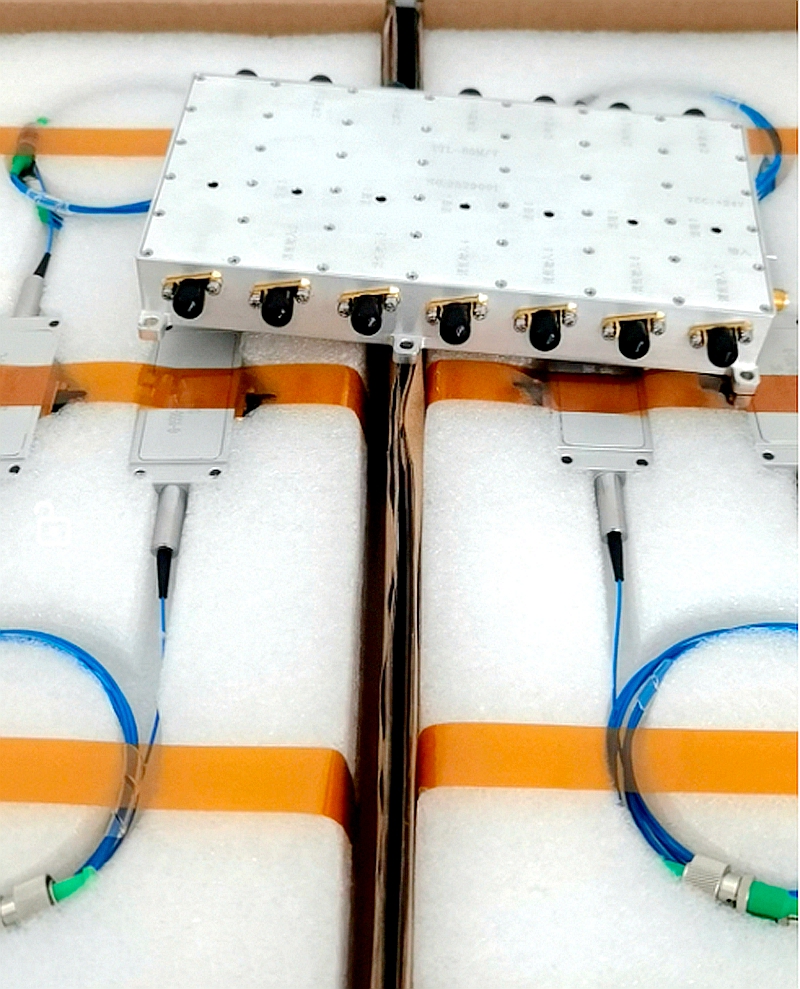

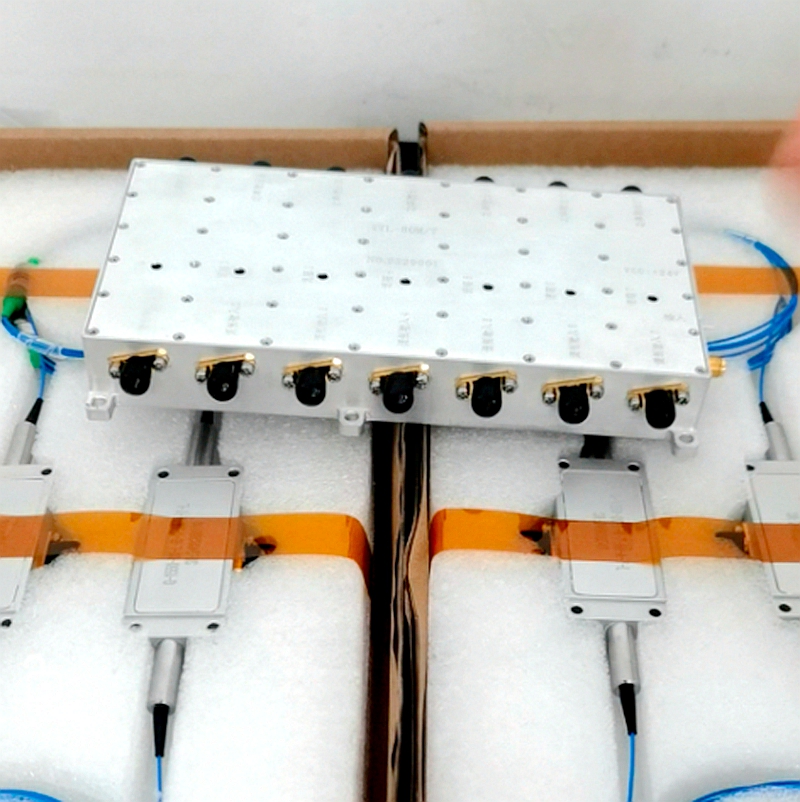

Acousto Optic Modulator 1 RF Drivers to X Modulators Customized AOM. We customized the AOM to 1 PCS RF driver match several AOMs.



Acousto-Optic Modulator

(1) Optical signal wavelength: 1550 ± 20 nm.
(2) Average input optical power: ≤20 dBm.
(3) Input/output fiber: Polarization-maintaining fiber, FC/APC connector, length ≥1 m.
(4) Insertion loss: ≤4 dB.
(5) Switch extinction ratio: ≥50 dB.
(6) Polarization extinction ratio: ≥18 dB.
(7) Operating frequency: ≥80 MHz.
(8) 3 dB frequency shift bandwidth: ≥2 MHz.
(9) Optical pulse rise/fall (10%–90%) time: ≤60 ns.
(10) Independent packaging, meeting the requirements for miniaturization and low power consumption.

RF Driver module

(1) Input RF signal: A fixed value within the range of 0 dBm to 3 dBm with a frequency that matches the operating frequency of the acousto-optic modulator and an input impedance of 50 Ω.
(2) Output RF signal: Synchronized with the input RF signal and with a signal-to-noise ratio loss of ≤5 dB.
(3) RF connection method: SMA with a cable length of ≥1 m.
(4) TTL modulation signal: TTL 3.3 V with a maximum repetition rate of ≥1 MHz, ≥60 dB isolation, and 50 Ω input impedance.
(5) Power supply: AC 220 V or DC 24 V.
(6) Independent packaging that meets the requirements for miniaturization and low power
