Description

760nm Laser Diodes TO39 TL-760-E03280 VCSEL Chip with TEC NTC



Datasheet: 760nm-Laser-Diodes-TO39-TL-760-E03280-VCSEL-Chip-with-TEC-NTC-datasheet



Features:
VCSEL Chip
Single-transverse-mdeo and linear polarization
With TEC, NTC

Applications:
Gas Sensing

Brief Specifications:
Emission Wavelength:760nm
Threshold Current:Min±2mA, Type: 0.6mA, Max: ±2mA
Output Power:0.3mW
Operating Voltage:2.1V
Spectral Bandwidth:100MHz

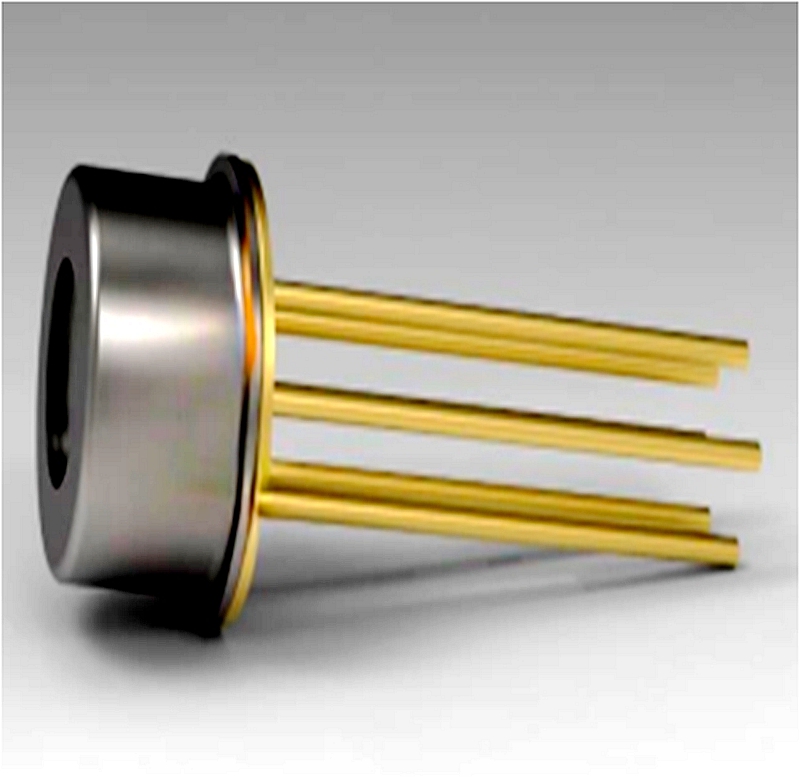

The TO-39 is a type of ‘metal can’ (also known as ‘metal header’) package for semiconductor devices. It is sealed hermetically to protect the device from environmental factors such as moisture and contaminants. The TO-39 is commonly used in housing transistors and integrated circuits with low lead counts.
