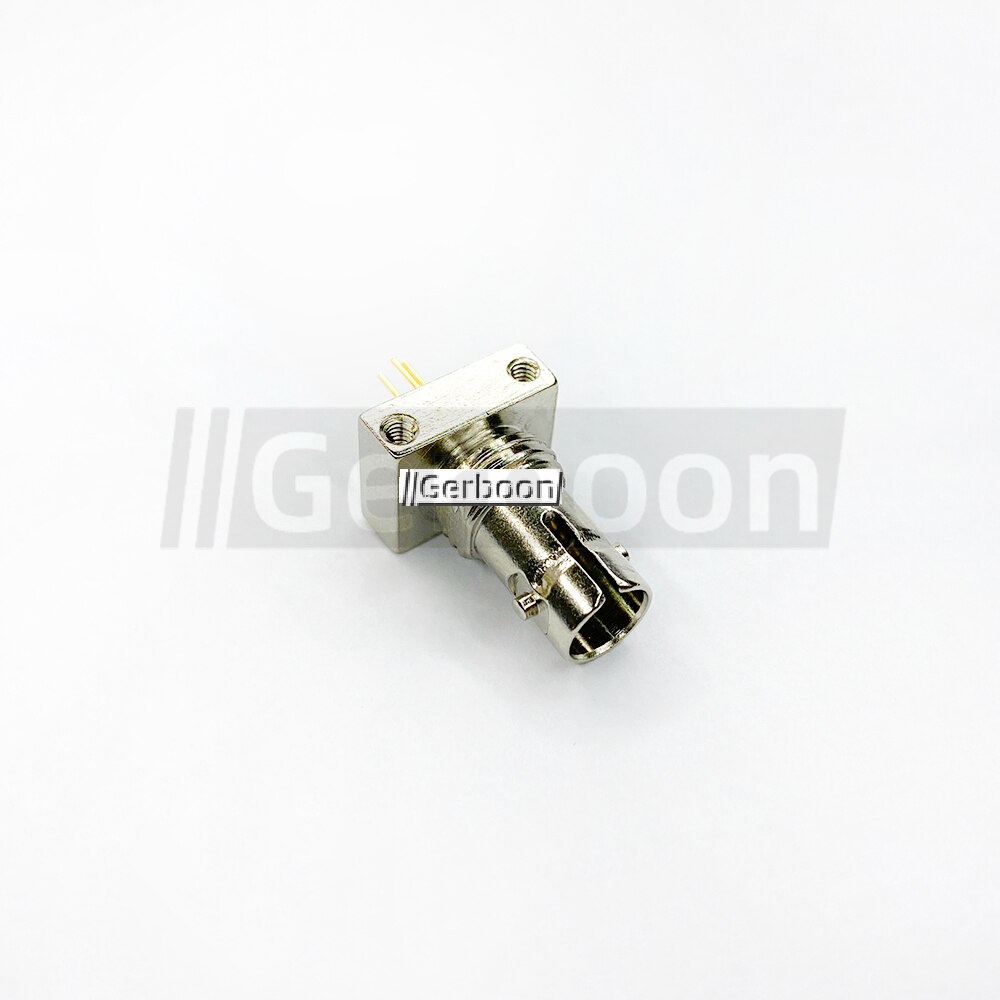

650nm 658nm Red Laser Diode LD 5.6mm ST TO56 for MOOG CT Laser Box HLM0610
Specifications:
Wavelength: 658nm
Light Output: 80mW CW mW
Package Type: TO-18(Φ5.6mm) TO56
Absolute Maximum Ratings(Tc=25℃)
|
Parameter |
Symbols |
Ratings |
Units |
|
Optical Output |
Po |
80 |
mW |
| Reverse Voltage |
Vr |
2 |
V |
| Photo diode | Vr(PD) | 20 | V |
| Operating Temperature |
Top |
– 10 ～ 40 |
℃ |
| Storage Temperature |
Tstg |
– 20 ～ 85 |
℃ |
Electrical and Optical Characteristics(Tc=25℃)
| Parameter |
Symbols |
Min | Typ. | Max | Unit. |
| Threshold Current |
Ith |
65 | mA | ||
| Operating Current |
Iop |
150 | mA | ||
| Operating Voltage |
Vop |
2.4 | Volt | ||
| Slope Efficiency |
η |
0.9 | mW/mA | ||
| Monitor Current |
Im |
– | mA | ||
| Beam Divergence |
θ// |
9.5 | deg. | ||
| (FWHM) |
θ⊥ |
17 | deg. | ||
| Central wavelength | λ | 658 | nm |
and θ⊥ are defined as the angle within which the intensity is 50% of the peak value.
