Description
Features
1. Absolute maximum ratings：50mW (CW)
2. TO-56 (Φ5.6mm) packaged
3. Low cost
Electrical and Optical Characteristics(Tc=25℃)
Lasing Wavelength:405nm Typ.
Optical Output:50mW
Operating Current:60mA
Operating Voltage:<5.3V
Operating Temperature:-10 to +50℃

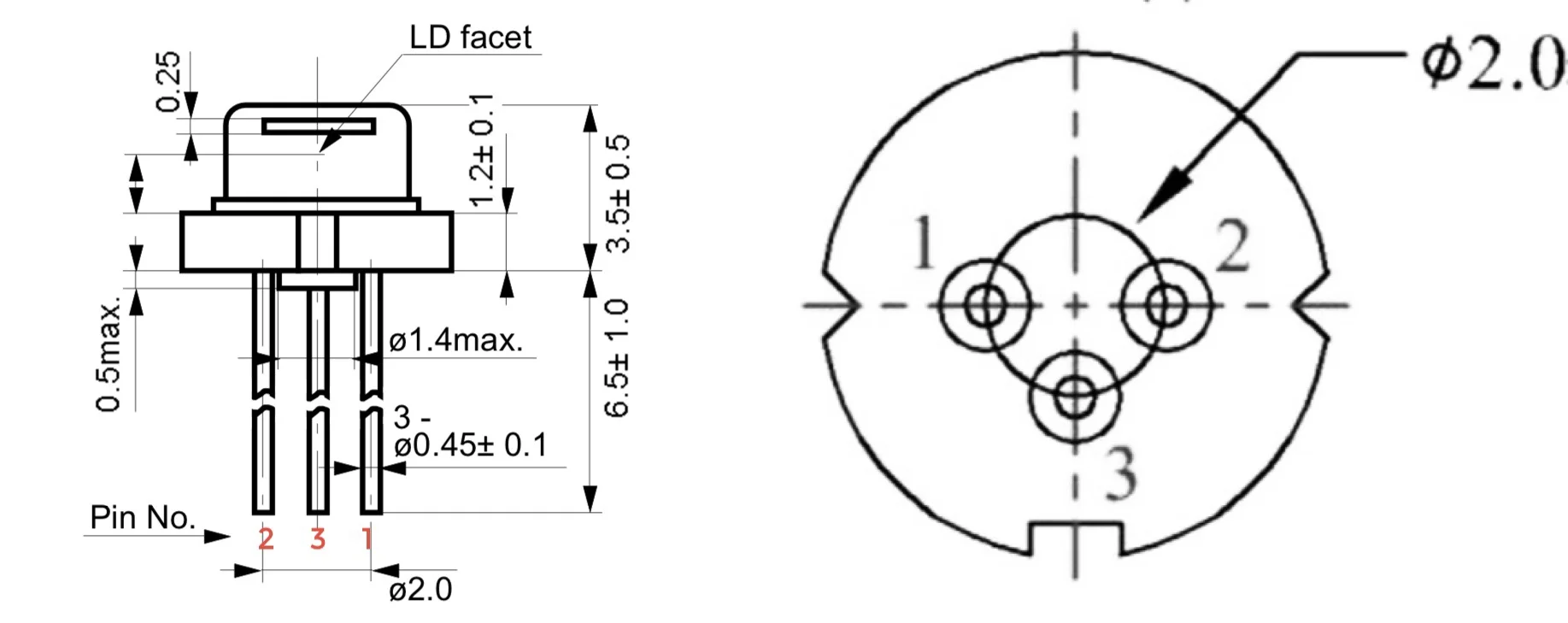

External dimensions(Unit : mm)
Pin Description
Pin1 Non connection
Pin2 LD Anode
Pin3 LD Cathode(case)
