Description

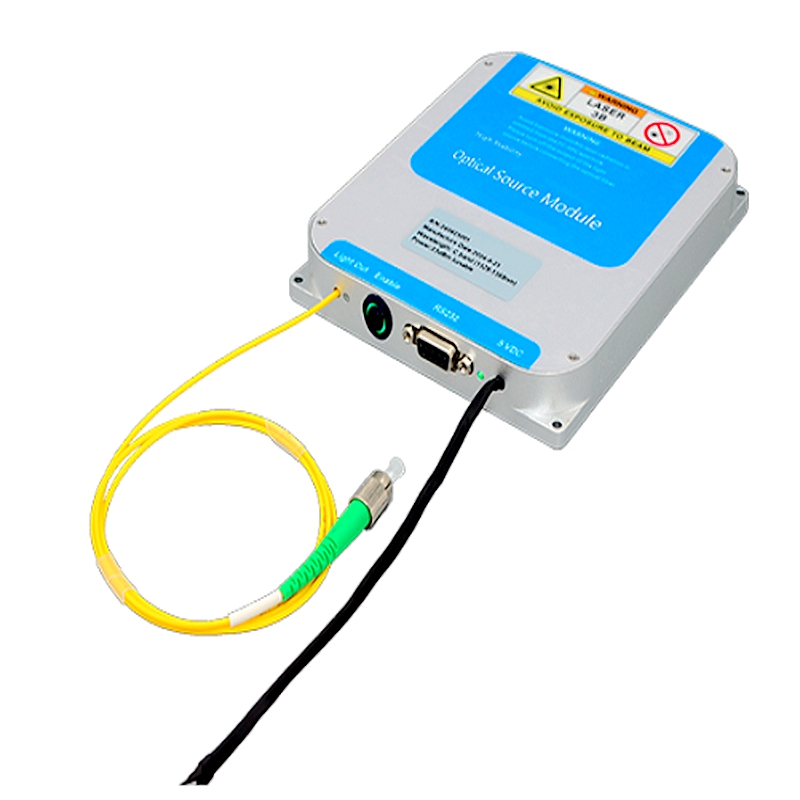

1064nm Tunable Diode Laser Light Source Module for Intergrated Wavelength Range 1010nm – 1080nm



1064nm Tunable Diode Laser Light Source Module for Intergrated Wavelength Range 1010nm – 1080nm  is based on ytterbium doped fiber (YB doped Fiber) and semiconductor pumped laser.

The spectrum covers 1040~1080nm, and can also be extended to 1010nm and 1030nm bands. The tunable Wavelength range is 40nm,50nm and 70nm. 1064nm IR Tunable Diode Laser has high output power and good flatness. It can be used for fiber optic device testing, FBG grating production.

Features:

Spectral flatness
Adjustable power
Highly stable output power

Applications:

FBG grating
Fiber optic sensing
Fiber optic device testing
Medical imaging
Fiber optic device testing

Specifications:

Central wavelength: 1064±2nm
Spectral range: 1040~1080nm
Output optical power: 10/20/30/50/100mW
Power adjustment range: 10%~100%dB
Output isolation: >35dB
Short-term stability (15 minutes): ≤ ±0.02dB
Long-term stability (8 hours): ≤ ±0.05dB
Polarization extinction ratio PER: ≤ 0.2, ≥23dB
Fiber and connector: Hi 1060, PM980

Electrical and environmental parameters

Control mode: button/RS232 serial communication
Communication interface: DB9 Female
Power supply: 100~240V AC, <30W
Dimensions: 260(W)×280(D)×120(H)mm
Operating temperature range: -5~+35°C
Operating humidity range: 0~70%





Informations:

1. Tunable Laser,  A tunable laser is a laser whose wavelength of operation can be altered in a controlled manner. While all laser gain media allow small shifts in output wavelength, only a few types of lasers allow continuous tuning over a significant wavelength range.

2. Tunable diode laser system, it can be benchtop or integrared module, depends on your applications.
